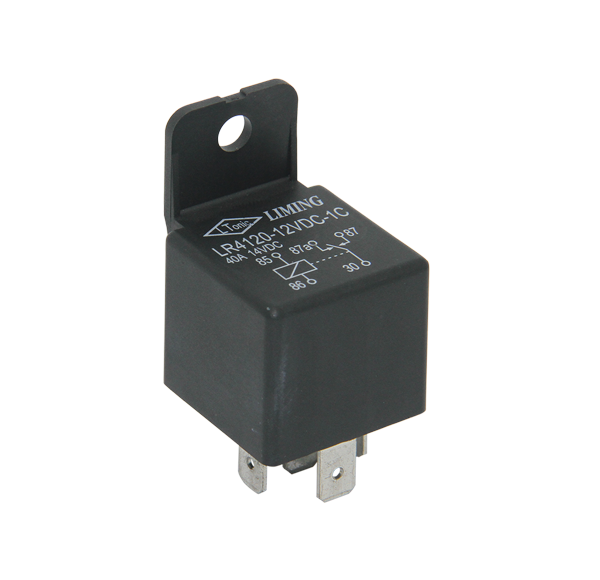

4120
| Outline Dimension(L×W×H) | 29x29x26+16 | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 1A,1B,1C | Between Coil and Contact | 750VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 5VDC ~ 24VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤70% | Temperature Range | -55~ +80℃ | |
| Release Voltage | ≥10% | Terminal Layout |
| |
| Coil Power(W) | 1.8 | Mounting Holes(mm) |  | |
| Contact transfer Current(A) | 40A | Mounting Form | QUICK Terminal | |
| Contact Rating | 30A/40A 14VDC | Weight | 40g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
