4119

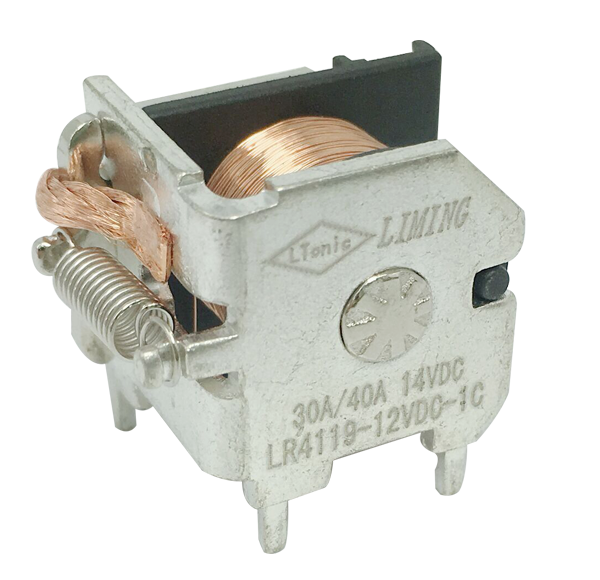

| Appearance | 4119 | |||
| Outline Dimension(L×W×H) | 24×19×20 26.5×21×22.3 | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 1A,1B,1C | Between Coil and Contact | 750VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 5VDC ~ 24VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤70% | Temperature Range | -55~ +85℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 1.6 | |
| Contact transfer Current(A) | 40A | Mounting Form | PCB Terminal | |
| Contact Rating | 30A/40A 14VDC 20A 120VAC/28VDC | Weight | 21/19g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
