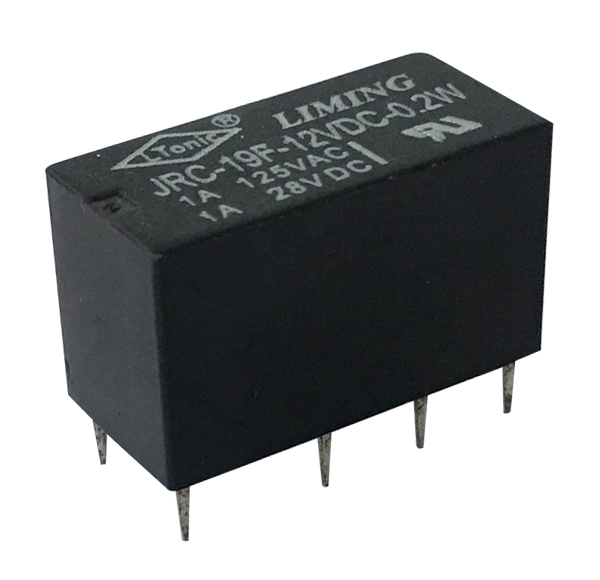

Outline Dimension(L×W×H)	20.5X10X12	Dielectric Strengh	Between Open Contact	500VAC
Contact Form	2C		Between Coil and Contact	500VAC
Contact Resistance	50 mΩ	Life	Electrical	1X105
Coil Voltage	5VDC ~ 48VDC		Mechanical	1X107
Pick-up Voltage	≤75%	Temperature Range		-40~ +70℃
Release Voltage	≥10%	Coil Power(W)		0.18,0.2,0.36
Contact transfer Current(A)	1A	Mounting Form		PCB Terminal
Contact Rating	1A,125VAC/28VDC	Weight		5g
Insulation Resistance	100 MΩ	Safty Approval		UL
Terminal Layout
Mounting Holes(mm)
