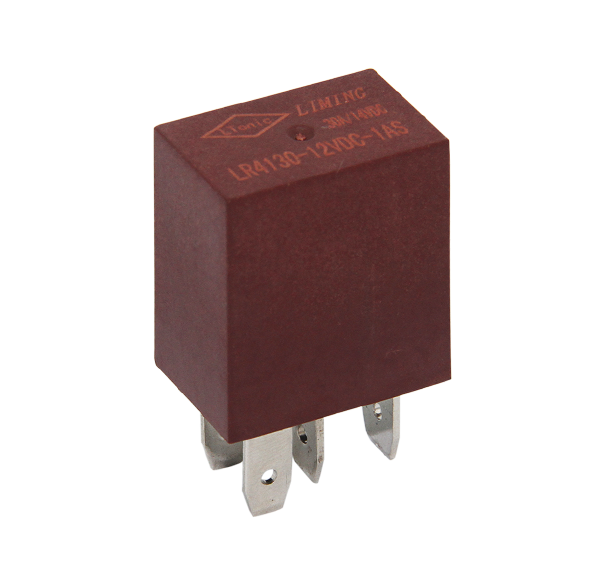

4130
| Outline Dimension(L×W×H) | 23.5×15.4×37.7 | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 1A | Between Coil and Contact | 1000VAC | |
| Contact Resistance | <50 mΩ | Life | Electrical | 105 |
| Coil Voltage | 6,9,12,24VDC | Mechanical | 107 | |
| Pick-up Voltage | ≤65% | Temperature Range | -40~ +85℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 1.2W,1.5W | |
| Contact transfer Current(A) | 25A | Mounting Form | QUICK Terminal,PCB | |
| Contact Rating | 25A 14VDC | Weight | 18g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
