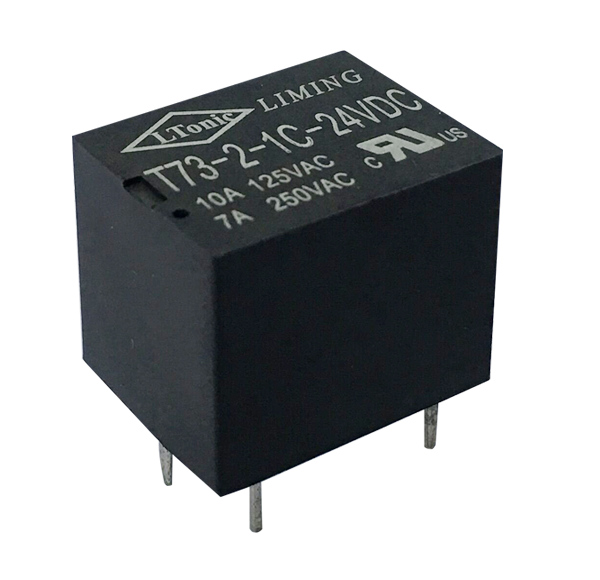

JQC-3F(T73-2)
| Outline Dimension(L×W×H) | 19.5×16×16.8 | Dielectric Strengh | Between Open Contact | 1000VAC |
| Contact Form | 1A,1B,1C | Between Coil and Contact | 3000VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1×105 |
| Coil Voltage | 3-48VDC | Mechanical | 1×107 | |
| Pick-up Voltage | ≤75% | Temperature Range | -40~ +85℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 0.36,0.45,0.6,0.8 | |
| Contact transfer Current(A) | 20A | Mounting Form | PCB Terminal | |
| Contact Rating | 20A/125VAC 10A/250VAC 7A/277VAC | Weight | 10g | |
| Insulation Resistance | 100 MΩ | Safty Approval | UL | |
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
