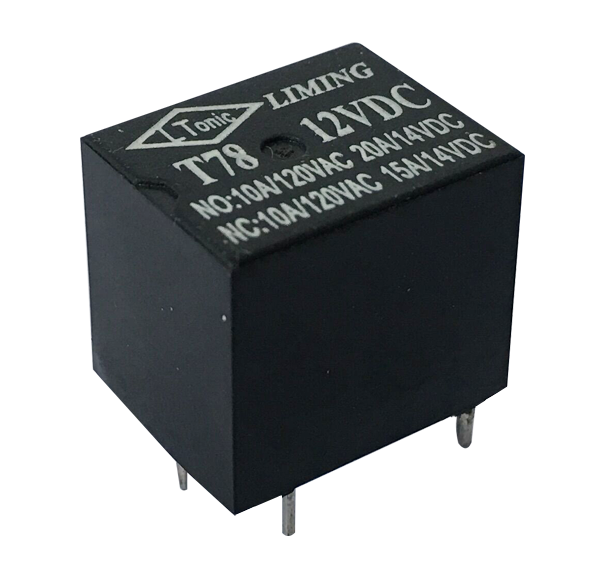

T78
| Outline Dimension(L×W×H) | 15.7×12.3×14 | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 1A,1C | Between Coil and Contact | 500VAC | |
| Contact Resistance | < 50 mΩ | Life | Electrical | 105 |
| Coil Voltage | 6,9,12,24VDC | Mechanical | 107 | |
| Pick-up Voltage | ≤65% | Temperature Range | -40~ +85℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 0.6W,0.8W | |
| Contact transfer Current(A) | 20A | Mounting Form | PCB Terminal | |
| Contact Rating | NO:20A 14VDC 10A 120VAC NC:15A 14VDC 10A 120VAC | Weight | 6g | |
| Insulation Resistance | 100 MΩ | Safty Approval | UL,TUV | |
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
