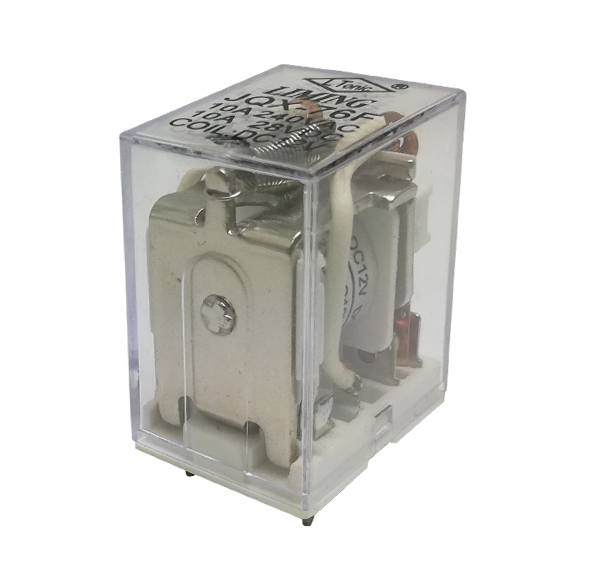

JQX-13F(76F)
| Outline Dimension(L×W×H) | 28.5×22×35 | Dielectric Strengh | Between Open Contact | 1000VAC |
| Contact Form | 2A,2C | Between Coil and Contact | 1500VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 5VDC ~ 48VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤75% | Temperature Range | -40~ +70℃ | |
| Release Voltage | ≥10% | Terminal Layout |
| |
| Coil Power(W) | 0.9 | Mounting Holes(mm) |  | |
| Contact transfer Current(A) | 10A | Mounting Form | PCB Terminal | |
| Contact Rating | 10A 240VAC/30VDC | Weight | 35g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
