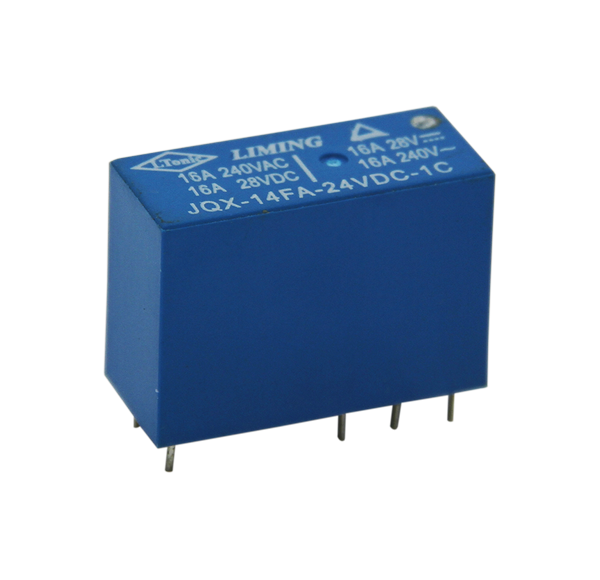

JQX-14FA
| Outline Dimension(L×W×H) | 28.9×12.6×20.6 | Dielectric Strengh | Between Open Contact | 1000VAC |
| Contact Form | 1A,1B,1C | Between Coil and Contact | 5000VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1×105 |
| Coil Voltage | 5VDC ~ 48VDC | Mechanical | 1×107 | |
| Pick-up Voltage | ≤80% | Temperature Range | -40~ +70℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 0.54,0.72 | |
| Contact transfer Current(A) | 16A | Mounting Form | PCB Terminal | |
| Contact Rating | 16A 240VAC/30VDC | Weight | 13g | |
| Insulation Resistance | 1000 MΩ | Safty Approval | UL | |
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
