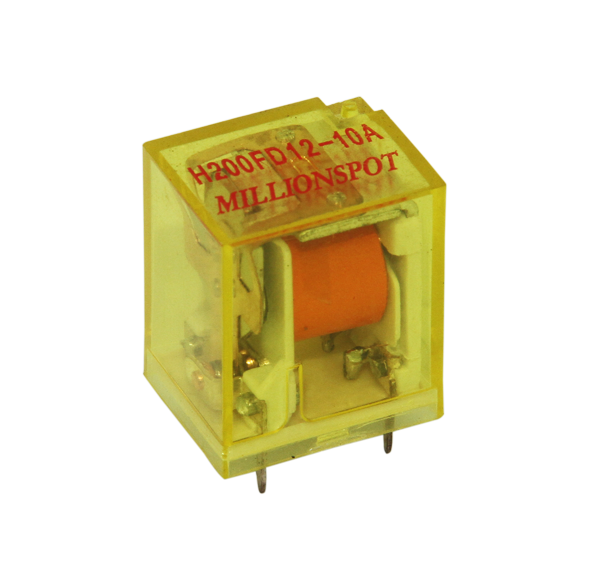

H200F

Pcb Relay

H200F

Outline Dimension(L×W×H)
22.5×16.5×23.5Dielectric Strengh
Between Open Contact
750VAC
Contact Form
1A,1CBetween Coil and Contact1000VAC
Contact Resistance 100 mΩLife
Electrical 1×105
Coil Voltage 5VDC ~ 48VDCMechanical1×107
Pick-up Voltage ≤75%Temperature Range -40~ +55℃
Release Voltage ≥10%Terminal Layout



Coil Power(W)0.36,0.45Mounting Holes(mm)


Contact transfer Current(A)
15AMounting Form PCB Terminal
Contact Rating
10A/15A/12VAC
28VAC
7A/240VAC
Weight14g
Insulation Resistance 100 MΩSafty Approval
