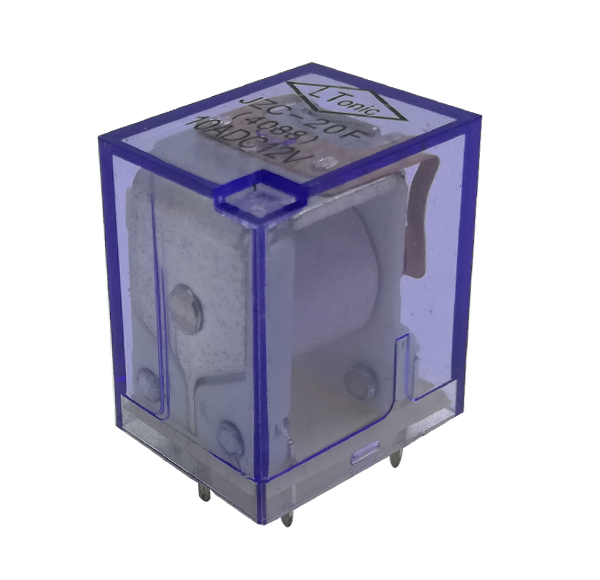

JZC-20F(4088)
| Outline Dimension(L×W×H) | 22.5×16.5×24 | Dielectric Strengh | Between Open Contact | 750VAC |
| Contact Form | 1A,1C | Between Coil and Contact | 1000VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1×105 |
| Coil Voltage | 5VDC ~ 48VDC | Mechanical | 1×107 | |
| Pick-up Voltage | ≤75% | Temperature Range | -40~ +55℃ | |
| Release Voltage | ≥10% | Terminal Layout |
| |
| Coil Power(W) | 0.36 | Mounting Holes(mm) |
| |
| Contact transfer Current(A) | 10A | Mounting Form | PCB Terminal | |
| Contact Rating | 5A/10A 120VAC 5A/10A 28VDC 5A 240VAC | Weight | 13g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
