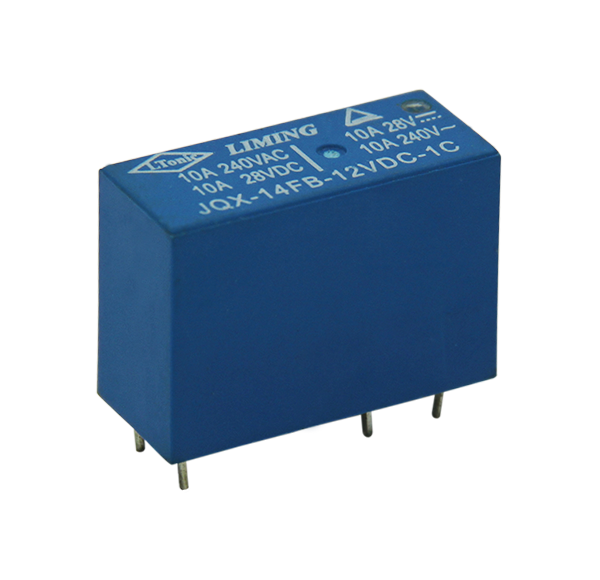

JQX-14FB

Pcb Relay

JQX-14FB

Outline Dimension(L×W×H)
28.9×12.6×20.6Dielectric Strengh
Between Open Contact
1000VAC
Contact Form
1A,1B,1CBetween Coil and Contact 5000VAC
Contact Resistance 100 mΩLife
Electrical 1×105
Coil Voltage 5VDC ~ 48VDCMechanical1×107
Pick-up Voltage≤80%Temperature Range -40~ +70℃
Release Voltage ≥10%Coil Power(W)0.54,0.72
Contact transfer Current(A)
10AMounting Form PCB Terminal
Contact Rating
10A  240VAC/30VDCWeight13g
Insulation Resistance 1000 MΩSafty Approval UL
Terminal Layout  1522042802677776.jpg
Mounting Holes(mm) 1522042820742402.jpg
