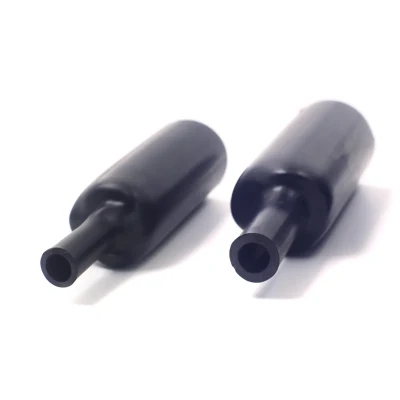

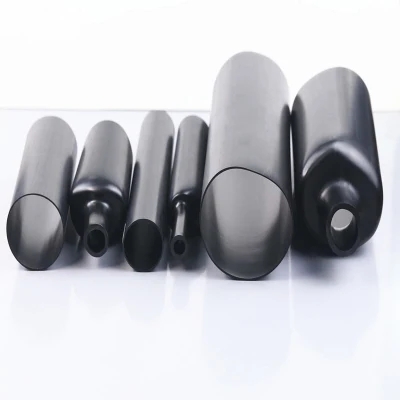

Adhesive Lined Heat Shrink Tubing

Adhesive Lined Heat Shrink Tubing

Description
Feedback

Property	Test Method	Typical Data
Operation temperature	IEC 216	-55ºCto110ºC
Tensile strength	ASTM D 2671	≥14MPa
Elongation break	ASTM D 2671	≥400%
Density	ASTM D 792	1.05g/cm3
Longitudinal shrinkage	UL 224	0 to 10%
Volume resistance	IEC 93	>1014Ω.cm
Eccentricity	ASTM D 2671	≤30%
Copper stability	ASTM D 2671	Pass

Product Dimensions

Normal size (mm)	As supplied (mm)	After recovered (mm)
Normal size (mm)	ID(Min.)	ID (Max.)	WT (Min.)
9/3	9	3	1.8
13/4	13	4	2.4
22/6	22	6	2.7
33/8	33	8	3.2
40/12	40	12	4.1
45/12	45	12	4.1
55/16	55	16	4.1
75/22	75	22	4.1
85/25	85	25	4.3
95/30	95	30	4.3
115/34	115	34	4.3
130/36	130	36	4.3
160/50	160	50	4.3
180/50	180	50	4.3
200/60	200	60	4.3
235/65	235	65	4.5
265/75	265	75	4.5
300/85	300	85	4.5
350/100	350	100	4.5
