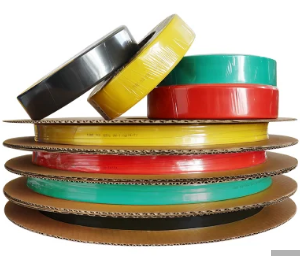

Heat Shrinkable Protective Tube/Tubing/Sleeve
Excellent insulation and rapid shrink. Mainly used for the outer protection of cable straight joints.
Features
• Material: Cross-linked polyolefin
• Operating temperature: -45 ºC~105 ºC
• Shrink temperature: Start at 100 ºC, and shrink totally at 130 ºC
• Color: Black.
v id="StyleTableProd">
| Part No. | Inner Diameter | recovered wall thickness Nom. (mm) | standard length(mm) | |
| As supplied Min. (mm) | After recovery Max. (mm) | |||
| WRSHG-10/5 | 10 | 5 | 1.2 | 275-1000 |
| WRSHG-15/7 | 15 | 7 | 1.3 | 275-1000 |
| WRSHG-20/8 | 20 | 8 | 1.7 | 275-1000 |
| WRSHG-30/11 | 30 | 11 | 1.8 | 275-1000 |
| WRSHG-35/13 | 35 | 13 | 2.0 | 275-1000 |
| WRSHG-40/17 | 40 | 17 | 2.2 | 275-1000 |
| WRSHG-50/22 | 50 | 22 | 2.5 | 800-1200 |
| WRSHG-60/25 | 60 | 25 | 2.5 | 800-1200 |
| WRSHG-80/30 | 80 | 30 | 2.9 | 850-1200 |
| WRSHG-100/39 | 100 | 39 | 3.0 | 850-1200 |
| WRSHG-120/45 | 120 | 45 | 3.0 | 850-1200 |
| WRSHG-140/56 | 140 | 56 | 3.5 | 850-1200 |
| WRSHG-160/58 | 160 | 58 | 3.5 | 850-1200 |
| WRSHG-180/60 | 180 | 60 | 4.0 | 850-1200 |
| WRSHG-210/70 | 210 | 70 | 4.5 | 850-1200 |
| WRSHG-240/87 | 240 | 87 | 4.5 | 850-1200 |
| WRSHG-300/98 | 300 | 98 | 5.0 | 850-1200 |
Technical Data:
| Property | Test Method | Standard Value |
| Tensile strength | ASTM-D-638 | ≥ 13MPa |
| Elongation at break | ASTM -D- 638 | ≥ 300% |
| Tensile strength after aging | ASTM-D-2671/120 º C, 168hrs | ≥ 11MPa |
| Elongation at break after aging | ASTM-D-2671/120 º C, 168hrs | ≥ 230% |
| Volume resistance | ASTM-D-2303 | ≥ 1× 10 14 Ω · cm |
| Dielectric strength | IEC 243 | ≥ 20kV/mm |
| Longitudinal shrinkage | - | ≤ 10% |
| Eccentricity | ASTM-D-2671 | ≤ 30% |
| Water absorption | ISO 62 | ≤ 0.1% |
