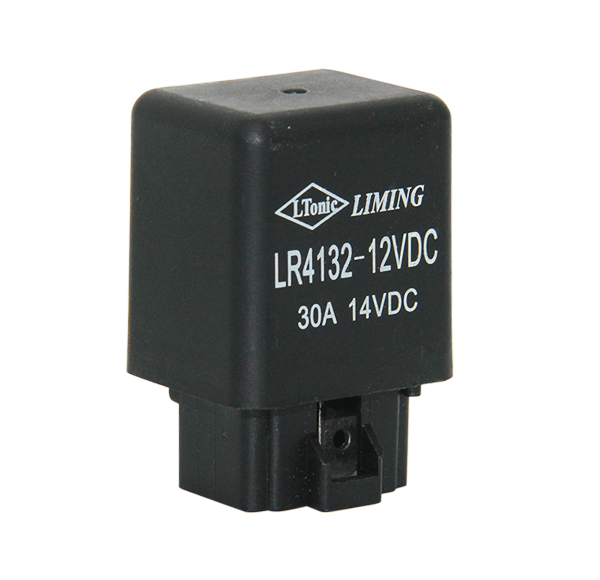

4132
| Outline Dimension(L×W×H) | 27.7×23×29.3(+20) | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 1A | Between Coil and Contact | 500VAC | |
| Contact Resistance | 50 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 6-48VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤70% | Temperature Range | -30~ +85℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 1.5,1.8 | |
| Contact transfer Current(A) | 30A | Mounting Form | QUICK | |
| Contact Rating | 30A/14VDC | Weight | 35g | |
| Insulation Resistance | 100 MΩ | Safty Approval | ||
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
