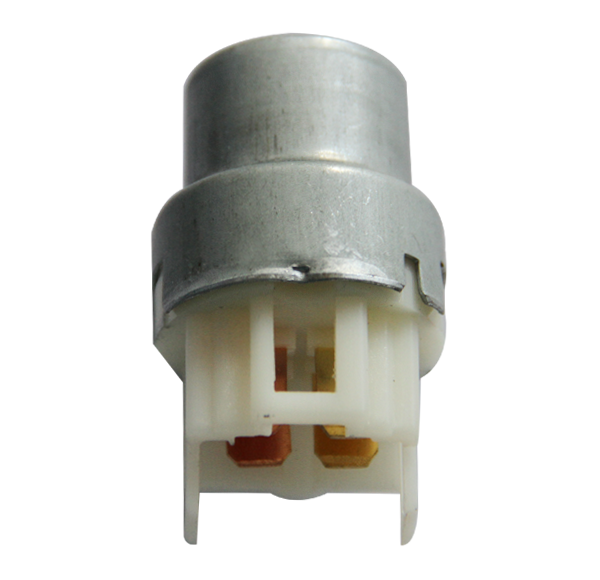

LR-4411
| Outline Dimension（L*W*H） | Φ30*43 | |
| Contact Form | 1A | |
| Contact Resistance | 50m Ω | |
| Coil Voltage | 6~24VDC | |
| Pick-up Voltage | ≦ 70% | |
| Release Voltage | ≧10% | |
| Coil Power（W） | 1.6W | |
| Contact transfer | 22A | |
| Contact Rating | 22A 14VDC （1A） | |
| Insulation Resistance | 100MΩ | |
| Dielectric Strengh | Between Open Contact | 550VAC |
| Between Coil and Contact | 750VAC | |
| Life | Electrical | 1*10⁵ |
| Mechanical | 1*106 | |
| Temperature Range | -40~+85℃ | |
| Terminal Layout |  | |
| Mounting Holes（mm） |  | |
| Mounting Form | QUICK Terminal | |
| Weight | 34g | |
| Safty Approval | TUV | |
