LR-4125

LR-4125

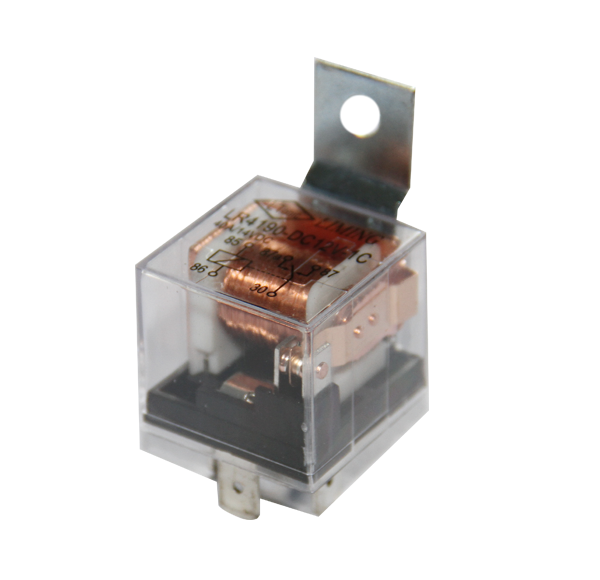

30A 14VDC High Quality Power Relay for Auto,Protective Characteristics Enclosed Rlay,Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay,Rated Current 40A/60A/80A,

LR-4125

Outline Dimension（L*W*H）29*29*26+16
Contact Form1A，1B，1C
Contact Resistance50m   Ω
Coil Voltage5VDC~24VDC
Pick-up Voltage≦  70%
Release Voltage≧10%
Coil Power（W）1.8W
Contact transfer40A
Contact Rating

30A/40A 14VDC

Insulation Resistance100MΩ
Dielectric StrenghBetween Open Contact500VAC
Between Coil and Contact750VAC
LifeElectrical1*10⁵

Mechanical1*10⁷
Temperature Range-55~+85℃
Wiring diagran 1523175279118162.jpg


Mounting Holes（mm） 1523934405669645.jpg
Mounting FormQUICK Terminal
Weight40g
Safty ApprovalTUV

30A 14VDC High Quality Power Relay for Auto,Protective Characteristics

Enclosed Rlay,Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay,Rated Current

40A/60A/80A,
