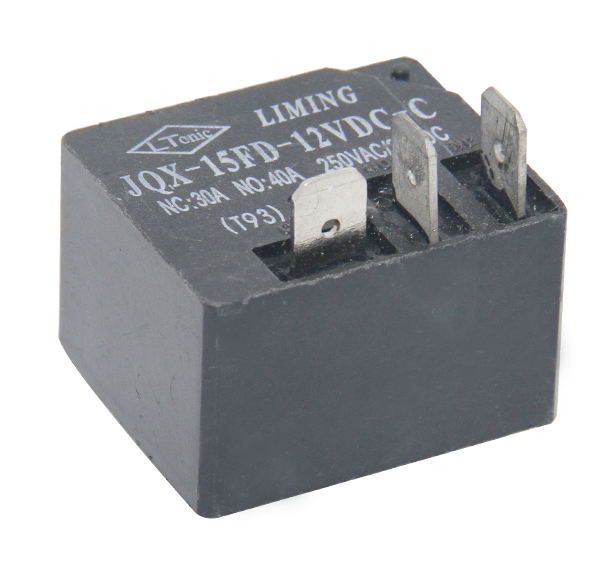

JQX-15FD(4503)
| Outline Dimension(L×W×H) | 32.5×27.5×20.5 | Dielectric Strengh | Between Open Contact | 1500VAC |
| Contact Form | 1A,1B,1C | Between Coil and Contact | 2000VAC | |
| Contact Resistance | 100 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 5VDC ~ 48VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤75% | Temperature Range | -55~ +85℃ | |
| Release Voltage | ≥10% | Terminal Layout |
| |
| Coil Power(W) | 0.9 | Mounting Holes(mm) |
| |
| Contact transfer Current(A) | 30A | Mounting Form | PCB Terminal | |
| Contact Rating | 20A,30A 240VAC/28VDC | Weight | 32g | |
| Insulation Resistance | 100 MΩ | Safty Approval | UL | |
