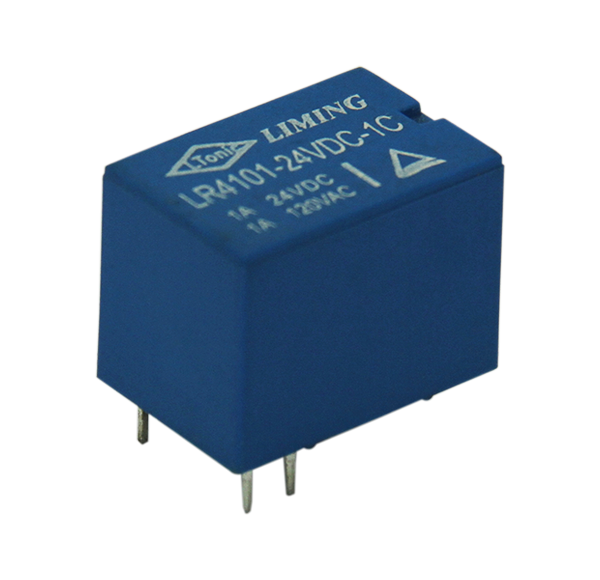

JRC-21F(4101)

Outline Dimension(L×W×H)	15.5x11x12.0	Dielectric Strengh	Between Open Contact	500VAC
Contact Form	1C		Between Coil and Contact	500VAC
Contact Resistance	100 mΩ	Life	Electrical	1X105
Coil Voltage	5VDC ~ 48VDC		Mechanical	1X107
Pick-up Voltage	≤75%	Temperature Range		-40~ +70℃
Release Voltage	≥10%	Terminal Layout
Coil Power(W)	0.2,0.36	Mounting Holes(mm)
Contact transfer Current(A)	3A	Mounting Form		PCB Terminal
Contact Rating	1A 120VAC/28VDC 3A 120VAC/28VDC	Weight		4g
Insulation Resistance	100 MΩ	Safty Approval		UL
